Description:

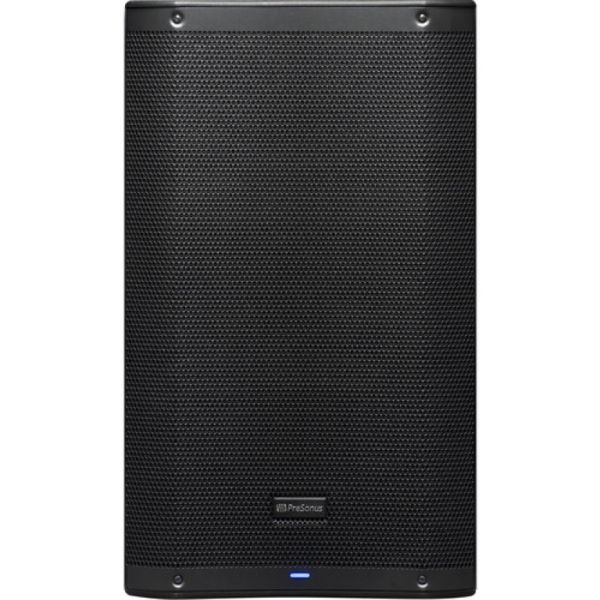

he AIR10 from PreSonus is a versatile and customizable 2-way active sound-reinforcement loudspeaker featuring 1200W of power and enhanced digital tuning functions, well suited for live bands, DJs, clubs, event halls, bars, speaking engagements, and more. The speaker utilizes two amplifiers for the high and low frequency drivers. A 500W (continuous) Class-D amplifier powers the 10″ woofer for efficient and clean low end performance, while a 200W (continuous) Class-A/B amplifier powers the 1″ compression driver for a natural “airy” high end. Both drivers combine to provide 121 dB SPL with a frequency response of 70 Hz to 20 kHz (-3 dB).

The integrated and easy-to-use digital signal processor (DSP) allows you to customize the loudspeaker for a number of applications including DJ, FOH, Monitor, and Speech presets. Additionally, ±10 dB of treble and bass control allows you to further tailor the sound and compensate for room anomalies. Location presets let you optimize performance for stand and bracket mounting as well as flown installations. The Air10 ships with a power cord.

Main Components

Hybrid “best of both worlds” 1,200W (dynamic) power amp configuration
- Low-Frequency Driver: 500W (continuous), Class D amplifier
- High-Frequency Driver: 200W (continuous), Class A/B amplifier
1″ high-frequency compression driver
10″ woofer with a 2″ voice coil
70 Hz to 20 kHz frequency response (-3 dB)
121 dB SPL (max)
90° x 60° (horizontal x vertical) dispersion pattern
Onboard mixer with two combo XLR-1/4” inputs and one summed balanced output

Controls

Easy-to-use DSP performance presets:
- DJ: Music playback
- FOH: Normal front-of-house
- Enhance: Enhanced low end for a warmer sound
- Monitor: Optimized for floor wedge placement
- Speech: Applications where speech intelligibility is critical
EQ
- HF response ±10 dB
- LF response ±10 dB
Additional presets and controls
- Stand: For mounting on a pole or tripod
- Bracket: For wall-mount applications
- Suspend: For suspended applications
